Schematics
Updated 15th October 2010
Partial Schematics for a 33950-65G61 ECU.

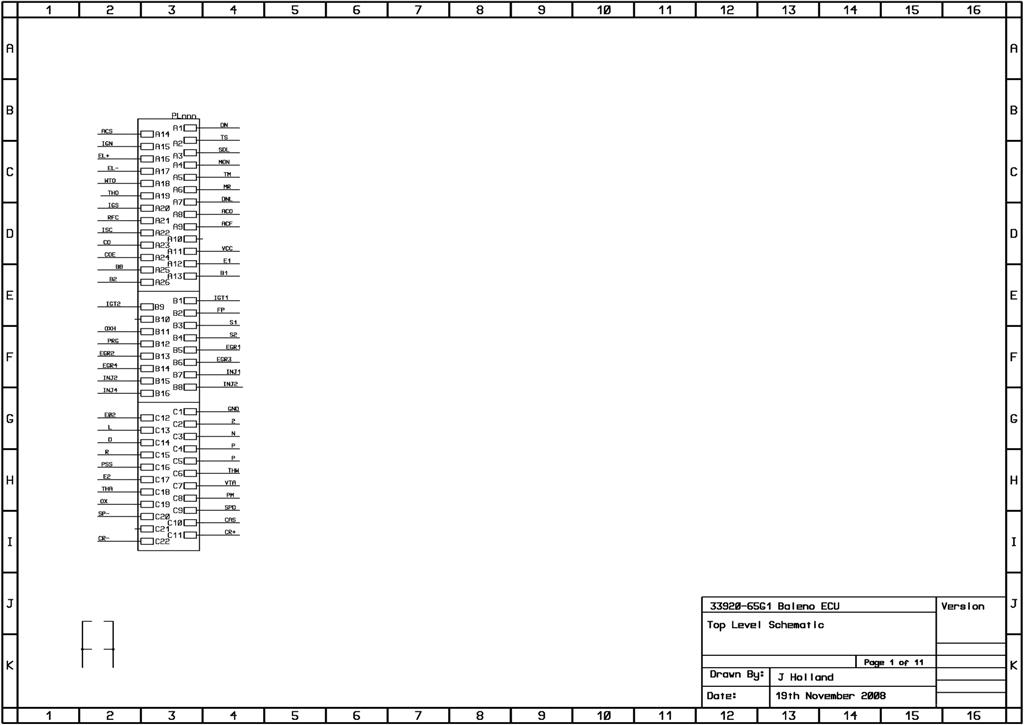

Top level Schematic

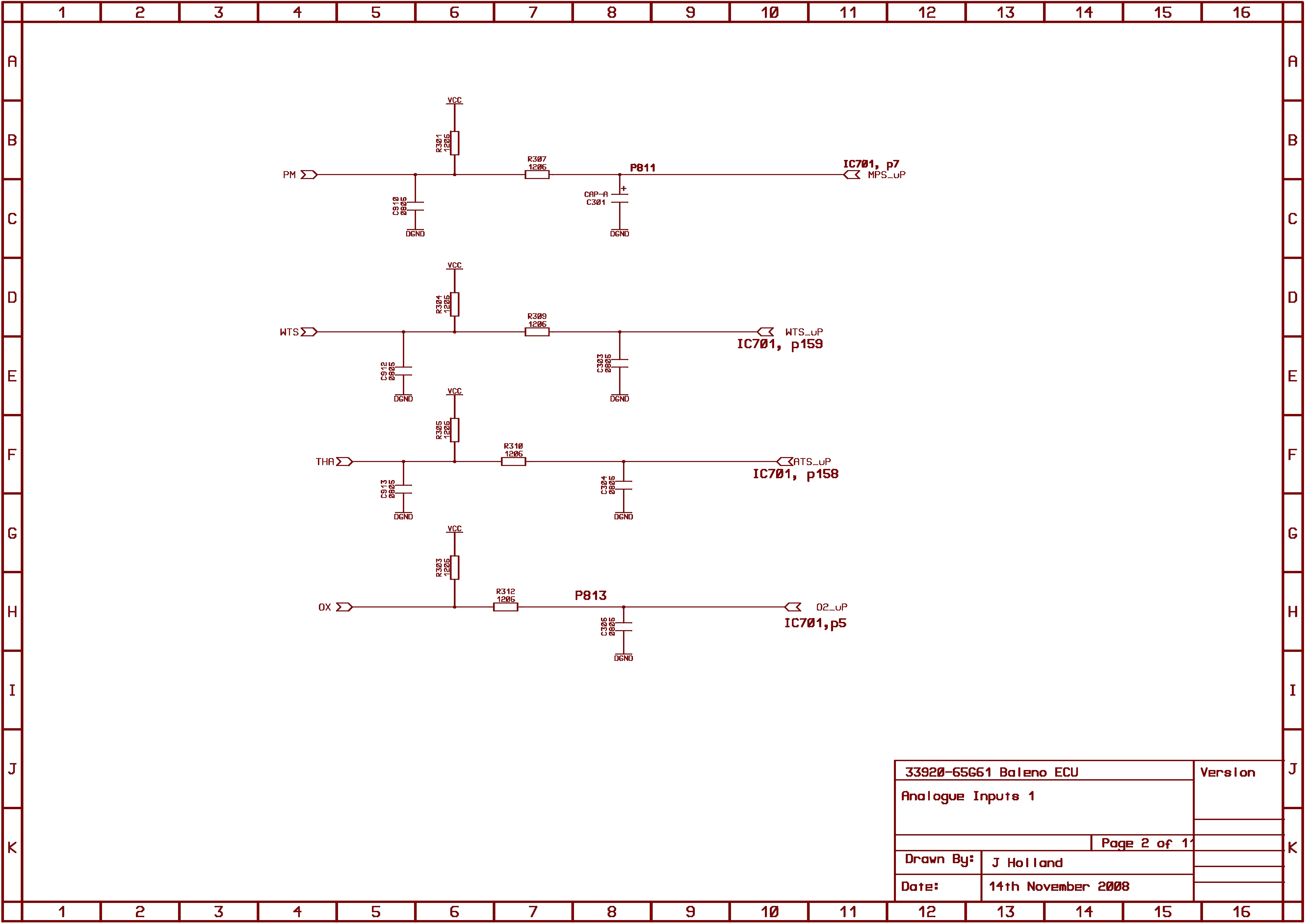

Analogue Inputs page 1

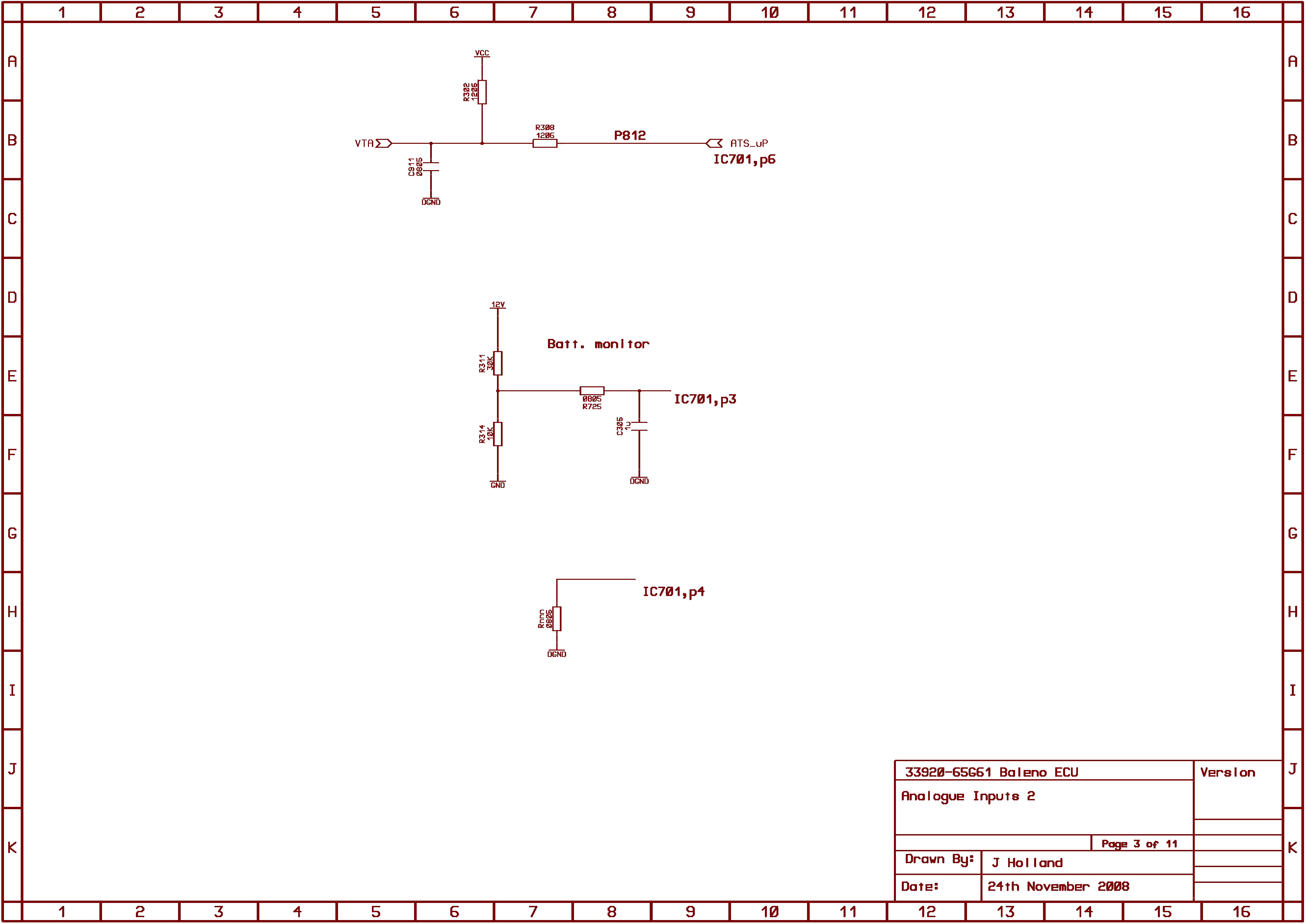

Analogue Inputs page 2

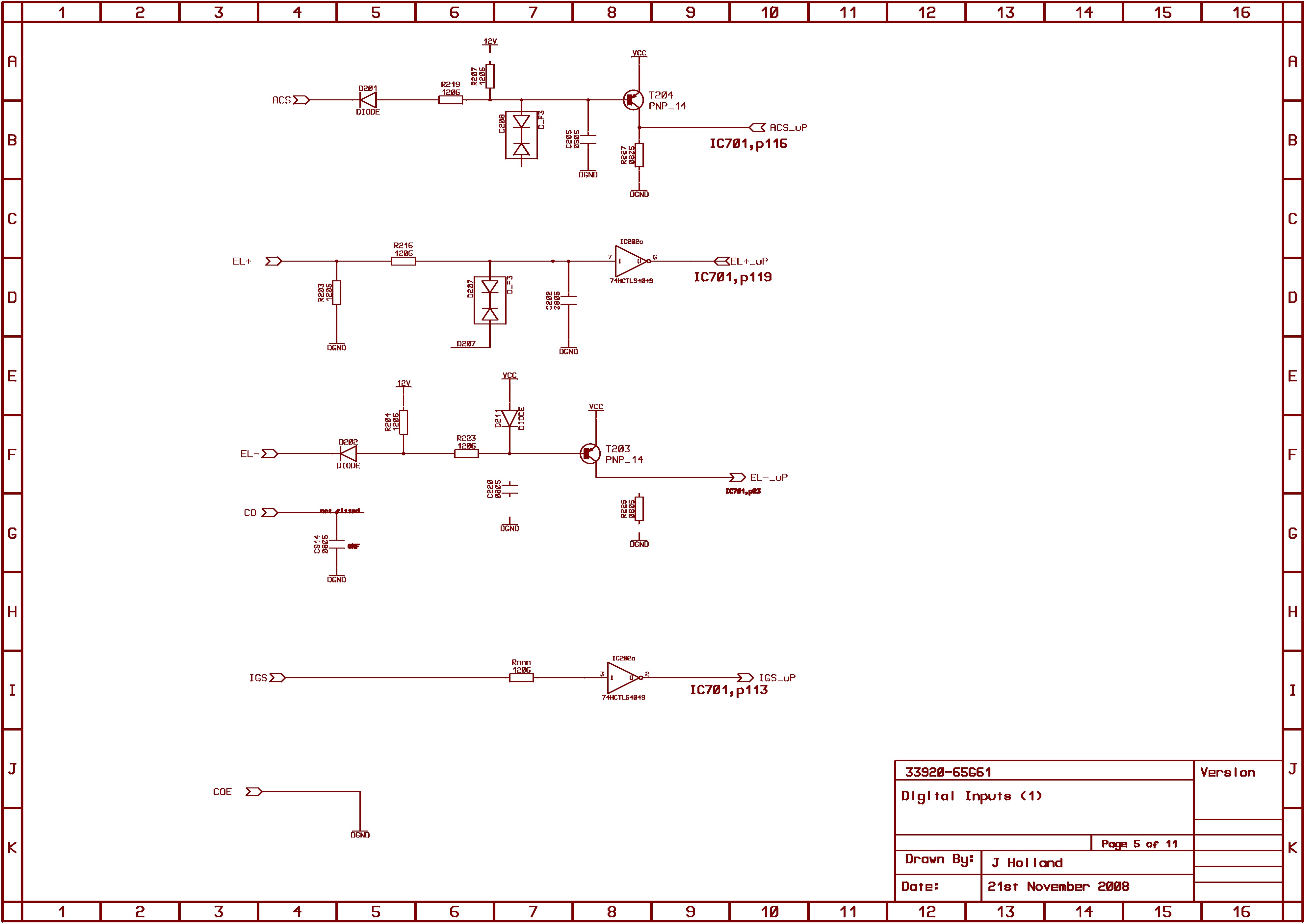

Digital Inputs page 1
Digital Inputs page 2

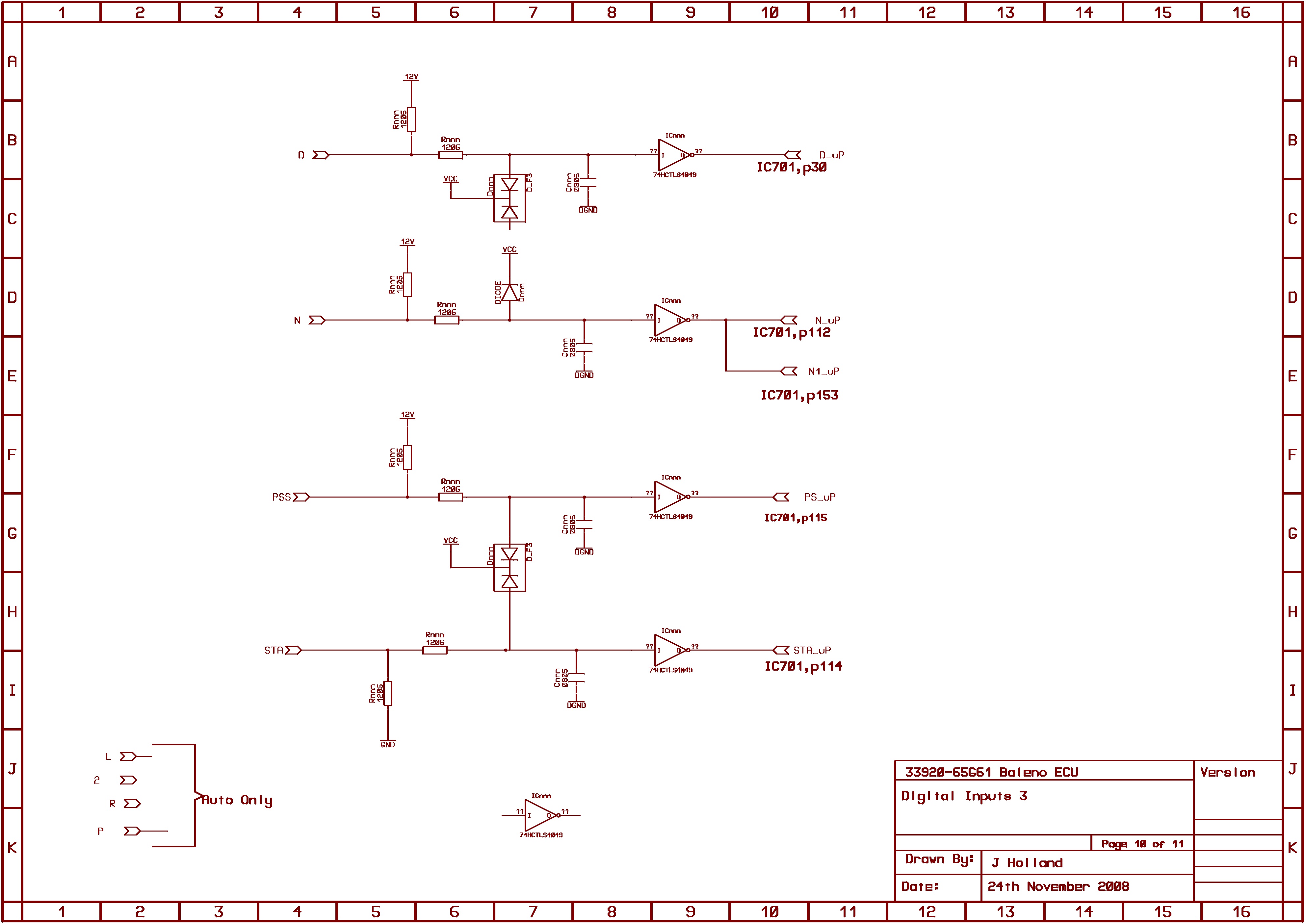

Digital Inputs page 3

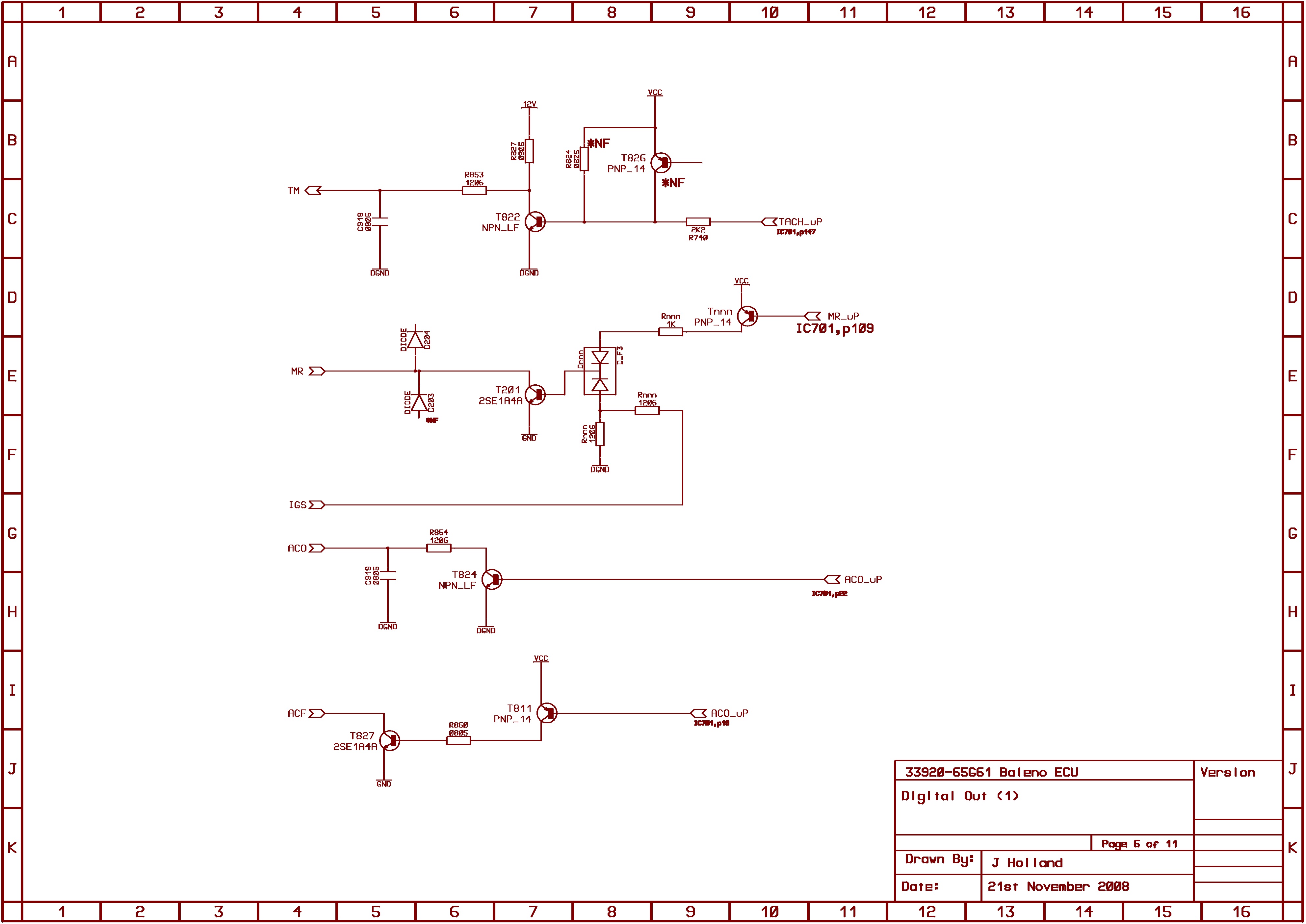

Digital Outputs page 1

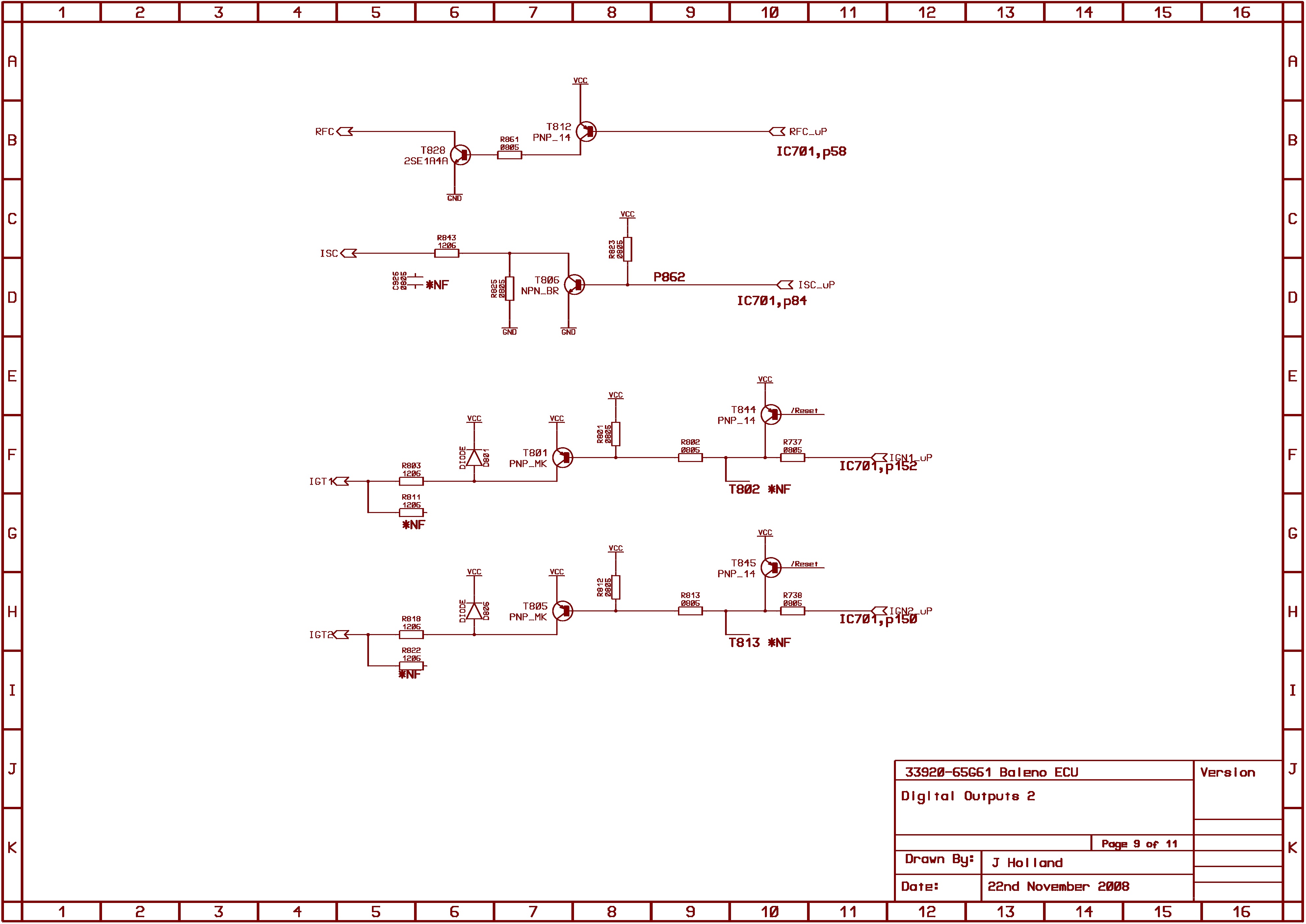

Digital Outputs page 2

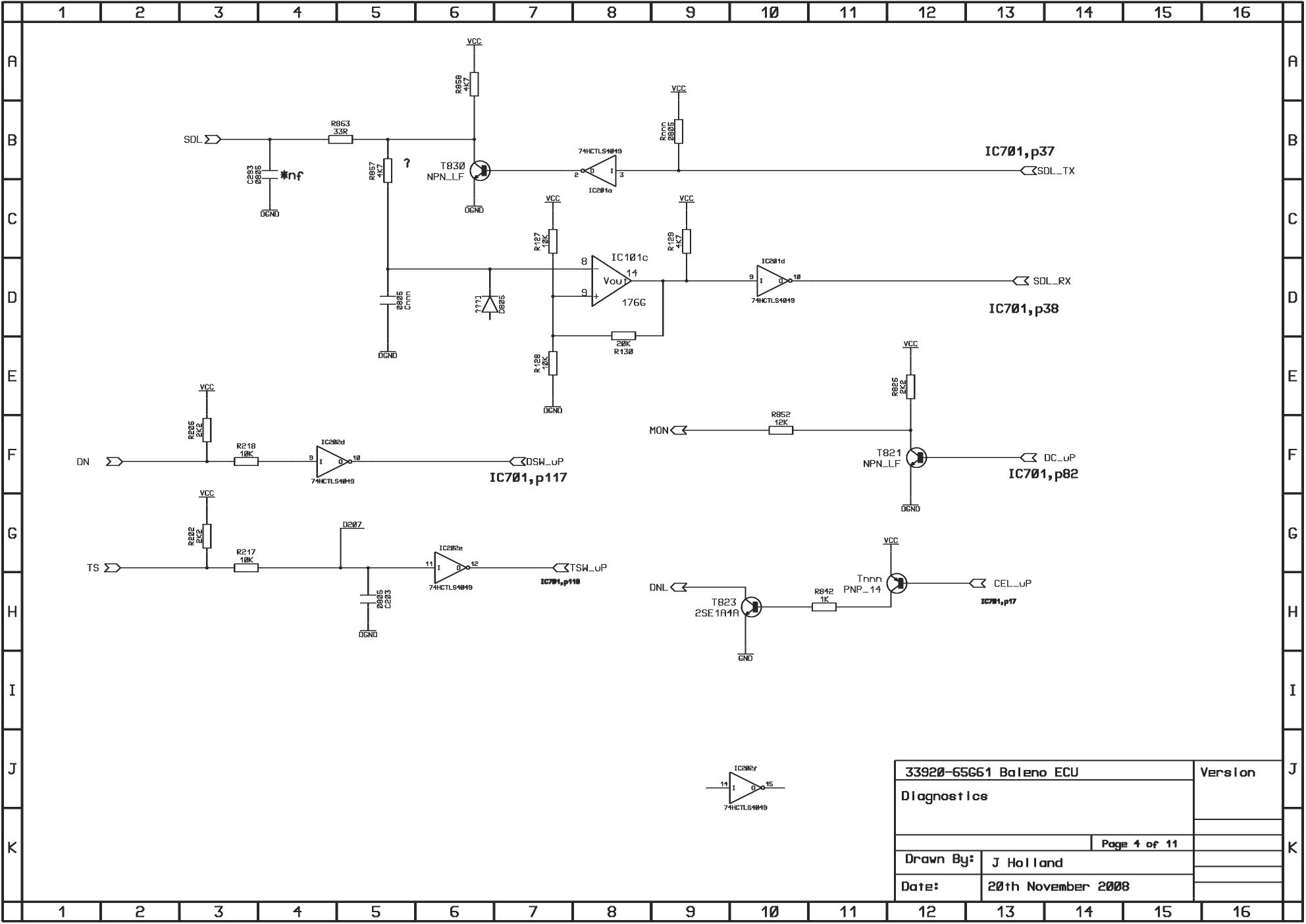

Diagnostics
